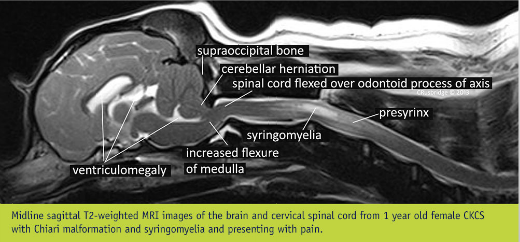

Dr. Clare Rusbridge, BVMS DipECVN MRCVS, of the Stone Lion Veterinary Centre in Wimbledon, UK, published the following protocol in October 2009, for veterinarians who perform magnetic resonance imaging (MRI) scanning to diagnose dogs suspected of having syringomyelia (SM) or Chiari-like malformation (CM).
Basic MRI Screening Protocol
for SM -- COMS -- OH
copyright by Clare Rusbridge, BVMS DipECVN MRCVS PhD.
Positioning:
The dog’s head should be in extension as mild flexion can “improve” a chiari malformation. This is often easiest to achieve by having the dog in sternal recumbency (prone) with the head elevated on a small foam cushion. If the dog is positioned in either dorsal or lateral recumbency then care must be taken to ensure that the head in extension especially in brachycephalic dogs as the head tends to flop forward especially when in dorsal recumbency.

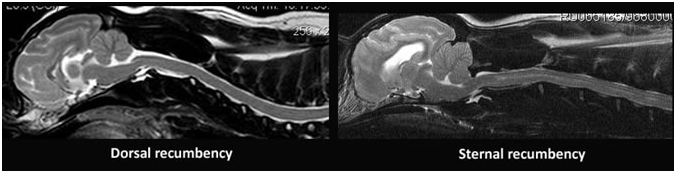

How head position affects apparent chiari malformation. The dog on the left, positioned in dorsal recumbency (supine) may have a mild chiari malformation however it is difficult to be sure.

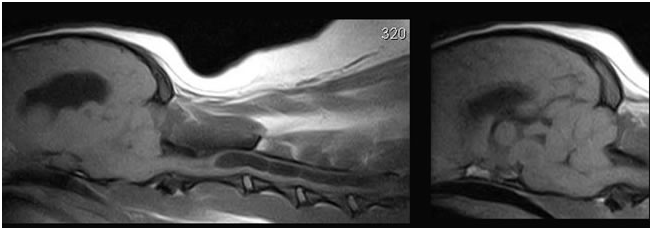

It is also essential that the head and neck are straight and in line with each other.
TW1 MRI images from a dog positioned with the head slightly rotated with respect to the neck. The images on the left were obtained for assessment of the cervical spinal cord and demonstrate a cervical syrinx (midsagittal cervical spine). However the section though the bran is slightly oblique giving an impression that the dog has only a mild herniation of cerebellum through the foramen magnum. The image on the right indicates the true appearance of the cerebellar herniation (midsagittal brain).
The images above illustrate how difficult it is to make assessments of severity of cerebellar herniation using isolated "snap shots" especially the person interpreting the MRI scan is not aware of how the dog was positioned. It also illustrates how important it is to position the dog accurately. A study on the effect of positioning on apparent severity of the chiari malformation was funded by the UK CKCS club.
Minimum area covered:
The minimum required images are
1) Sagittal T1W from intra thalamic adhesion to as far caudal as possible – The images must include a mid sagittal section of spinal cord visible in one section from the cisterna magna to the C4/C5 intervertebral disc space. If this cannot be achieved because the dog has scoliosis secondary to syringomyelia then a dorsal image of the spinal cord must be included in addition.
2) Sagittal T2W as above
3) T1W Transverse images though the maximum width of the syrinx if there is syringomyelia or as a block centred on C2/C3 and extending from at least mid point of the vertebral body of C2 and reaching the mid point of the vertebral body of C3
In addition transverse images though the lateral ventricles and tympanic bullae are preferred (the latter can be low quality images).
I image from ~ level of the thalamus / corpus callosum to as far caudal as possible. For minimum (i.e. low cost) imaging, three (3) sequences are done. If paying full price for a scan, I would expect a full study of the areas covered.

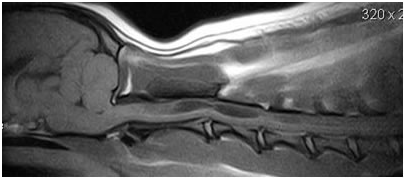

Example of a good quality “mini” MRI scan.
Does quality matter?

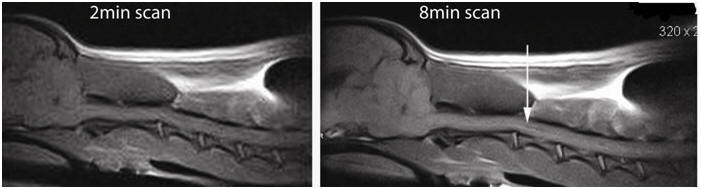

In the UK low cost MRI screening for SM is performed in many cases on ESOVATE MRI machines. Images of excellent quality can be obtained but operators should beware of taking short cuts either for time or economic reasons. Subtle SM may be missed. The images above are taken from the same dog with a narrow syringomyelia (arrow). The image on the left is taken with a short acquisition times and the SM is not appreciable. The image on the right is a longer acquisition time. The consequence to the breeder of missing subtle disease may be devastating as his or her whole breeding program may be based on the assumption that the dog in question is unaffected.
For more information about MRI scanning for Chiari-like malformation and syringomyelia, including examples of settings for ESOVATE machines, see Dr. Rusbridge's SM MRI screening webpage for veterinarians, from which the foregoing information has been excerpted.
Proposed BVA KC Syringomyelia MRI screening scheme
On October 24, 2008, a panel of veterinary neurologists met at the British Veterinary Association in London, England to discuss a proposed new syringomyelia MRI screening protocol. At this point -- October 2009 -- it is subject to further review and approval, but here is the gist of it at this preliminary stage:
Proposed BVA KC Syringomyelia MRI screening scheme
SUMMARY (October 24, 2008)
Members of Panel
Members of the panel must be board certified in neurology or radiology and have the capacity to read DICOM images i.e. have E Film ™ or similar.
Certification
Breeders will receive a YES / NO answer on whether the dog has central canal dilatation or syringomyelia.
If the dog has a syringomyelia then certificate will also detail the maximum transverse width of the syrinx on a T1W image cranial to the C4-5 disc space.
Imaging
The minimum required images are:
1) Sagittal T1W from intra thalamic adhesion to as far caudal as possible – The images must include a mid sagittal section of spinal cord visible in one section from the cisterna magna to the C4/C5 intervertebral disc space.
If this cannot be achieved because the dog has scoliosis secondary to syringomyelia then a dorsal image of the spinal cord must be included.
2) Sagittal T2W as above.
3) T1W Transverse images though the maximum width of the syrinx if there is SM or as a block centred on C2/C3 and extending from at least mid point of the vertebral body of C2 and reaching the mid point of the vertebral body of C3.
Identification of dogs and labeling of images
Dogs presented for scanning must have permanent identification in the form of microchip / tattoo and Kennel Club Registration number. [NOTE: This identification requirement does not apply to dogs suspected of having syringomyelia.]
The microchip / tattoo and the Kennel Club Registration number together with the name, sex, breed and date of birth should be incorporated onto the DICOM images.
Age of dogs
The wording of the certificate will clearly state that this is the MRI status of the dog at the current time and that the situation may change.
The minimum screening age is 12 months. [NOTE: This age limitation does not apply to dogs suspected of having syringomyelia.]
It is also recommended that breeders determine the MRI status of their breeding stock at 2-3 years and again when 6 years of age. This will provide further information about that individual dog’s estimated breeding value EBV (and therefore the EBV of that individual dog’s offspring).
Proposed Procedure
DICOM files on a CD are submitted together with the appropriate documentation to the BVA
BVA will check documentation and DICOM images before sending on to 2 members of the panel.
Those 2 panel members will reach a consensus decision – if they disagree then the images will be referred to the arbitrator.
Results are submitted to the BVA.
Certificate is issued to the owner.
Results are submitted to the Kennel Club and can be accessed by appropriate individuals e.g. Canine Genetics Unit at the Animal Health Trust.
Appeals will be submitted to the arbitrator of the panel.
Procedure for non-diagnostic images
An image is designated non-diagnostic by a consensus opinion from the 2 panel members.
In the case of conflict (i.e. one panel member considers acceptable and the other not) then the arbitrator will make the final decision.
If images are non-diagnostic then the veterinarian concerned will be informed in writing as to why the images are unacceptable, together with constructive advice for improving them.
Inclusion of breeds other than CKCS
This scheme is not breed specific i.e. any breeder may participate providing the dog has permanent identification in the form of tattoo or microchip.
Inclusion of dogs from other countries
This scheme is also not limited to the UK i.e. images and appropriate documentation may also be submitted from other countries.
Dogs scanned before the scheme comes into effect
Breeders are encouraged to submit result certificates for SM and mitral valve dysplasia, together with the Kennel Club registered name and number of the dog or a 5-generation pedigree to Dr Sarah Blott, CKCS Health Breeding Programme, Animal Health Trust, Lanwades Park, Kentford, Newmarket, Suffolk CB8 7UU. PDF copies of the certificates can also be sent to sarah.blott@aht.org.uk
It is likely that it will be many months before an official scheme can be started. This is because of the lengthy consultation and preparation process that is involved.
Prior to the scheme coming into effect it is recommend that from January 2009:
1) The approved protocols for imaging are followed – this will include permanent identification of dogs with microchip or tattoo;
2) That the images are reviewed by a board certified radiologist or neurologist.
